❂Thermal capacity: 10 – 110 t/h
✾Rated thermal efficiency: ≥98%
❁Pressure: 1.25 – 5.3 Mpa
⚘Available fuel: natural gas LPG heavy oil diesel dual fuel etc
✓Available industries: food beverage feed mill textile mill paper mill packaged refinery chemical pharmaceutical etc.
Widely used in petroleum, chemical production, food processing, textile, printing and dyeing, tobacco, feed processing, medicine, building materials, brewing, rubber, hospital sterilization, mechanical processing, vegetable oil processing, non-ferrous metal processing, centralized heating, paper industry, tobacco industry, cable processing, hotels and life heating.

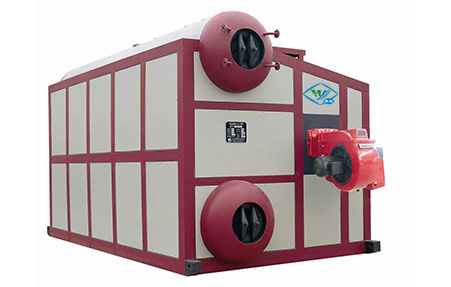

Features a double drum and D type layout with a large radiant heating surface for the best thermal efficiency
Uses a membrane wall structure for superior sealability, reducing the need for insulation and refractory materials, and simplifying maintenance.
Includes a fully automatic burner with ignition control, offering high combustion efficiency, low harmful gas emissions, and safety functions for over-pressure and flame-out.
The boiler shell is insulated with 8cm thick aluminum silicate board, providing excellent heat preservation.
Positioned at the boiler tail, the economizer lowers exhaust gas temperatures and boosts thermal efficiency to approximately 97%.
Equipped with two explosion doors on the furnace roof to ensure safe and efficient boiler operation.
Parameter
| Model | Rated Evaporation (t/h) | Rated Steam Temperature (℃) | Working Pressure (Mpa) | Water Supply Temperature (℃) | Heating Area (㎡) | Overall Dimension (mm) |
| SZS4-1.25-Y(Q) | 4 | 194 | 140 | 172 | / | 5700×1900×3600 |
| SZS10-1.25-Y(Q) | 10 | 194 | 1.25 | 20 | 340.23 | 8500×5865×4670 |
| SZS15-1.25-Q | 15 | 194 | 1 | 104 | 632.99 | 7970×4628×3470 |
| SZS20-1.25-Y(Q) | 20 | 194 | 1.25 | 105 | 556.64 | 12220×6895×4465 |
| SZS25-1.25-Y(Q) | 25 | 194 | 1.25 | 105 | 714 | 10860×70000×4850 |
| SZS30-2.45-Y(Q) | 30 | 225 | 2.45 | 105 | 767 | 12900×7000×4850 |
| SZS35-2.45-Y(Q) | 35 | 225 | 2.45 | 105 | 958 | 12910×7000×4850 |
| SZS50-2.45-Y(Q) | 50 | 225 | 2.45 | 105 | 1230 | 13200×12000×4700 |
