Thermal capacity: 1-25 ton/h
Rated thermal efficiency: 97-100%
Pressure: 1-1.6Mpa
Available fuel: Heavy oil, diesel, natural gas, lpg, etc.
Available industries: food beverage feed mill textile mill paper mill packaged refinery chemical pharmaceutical, etc.

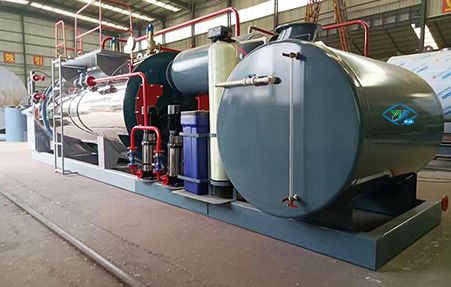

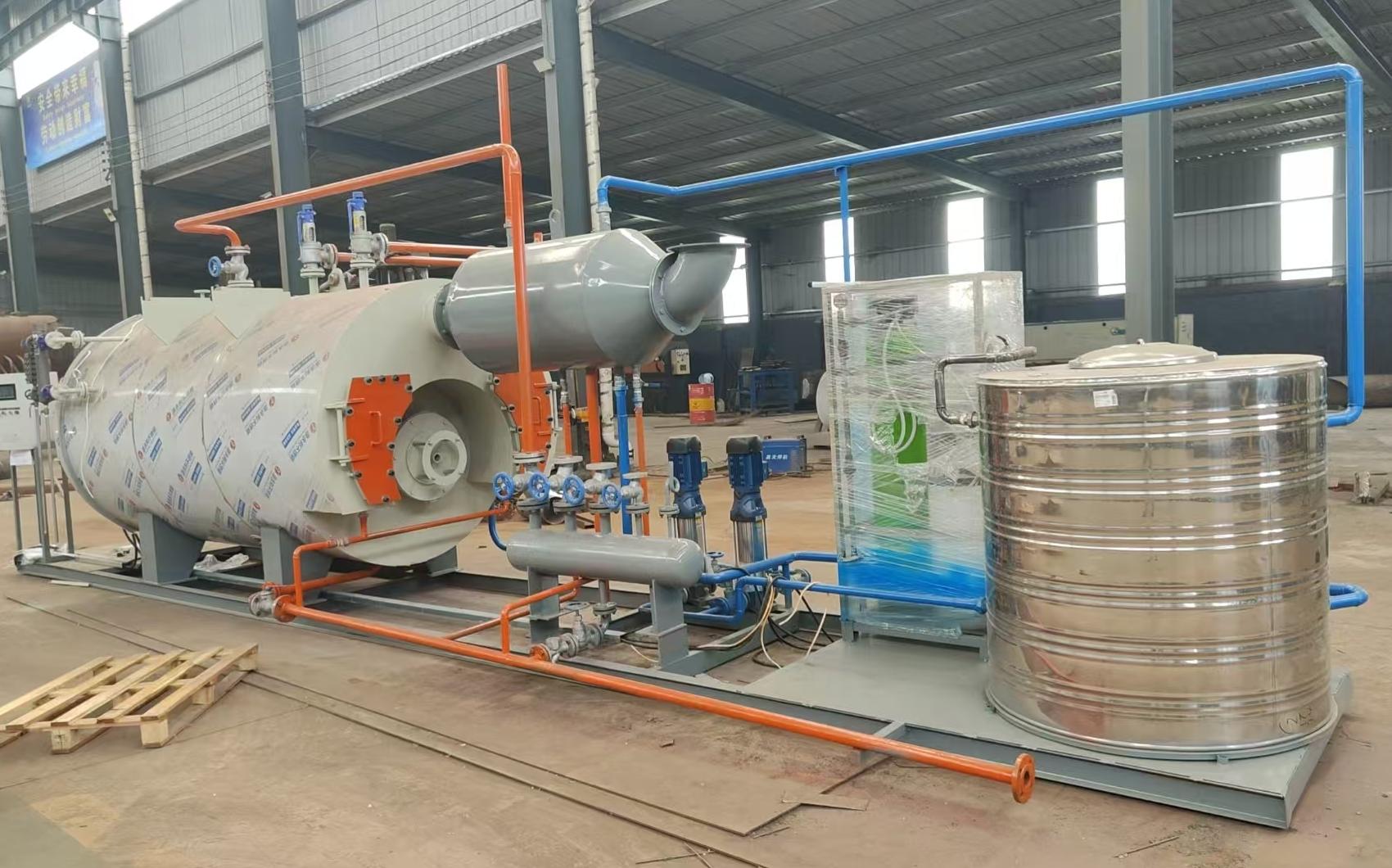

Skid-mounted boiler is a boiler equipment that integrates the boiler body and related control system, soft water processor, soft water tank, feed pump, split cylinder and instrumentation valves and other ancillary auxiliary equipment all in one box. This design makes the whole boiler system become a movable unit, only need to connect the power supply can be fully automatic operation, no need to build a separate boiler room.

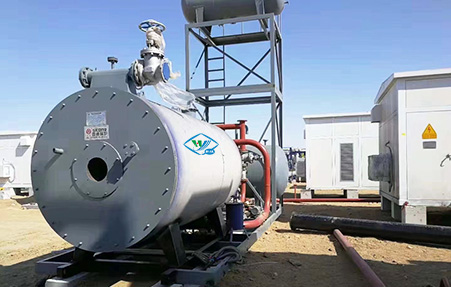

One or more skid blocks can be set up as required, enabling easy transportation to various occasions where temporary or mobile heat sources are required, such as construction sites, oilfields, mining areas, etc., so as to quickly meet the heating demand.
All equipment is integrated into a box, factory installed. Simply place the box in the designated location, connect the power and fuel supply, and start operation.
No installation is required, it runs efficiently and can be reused on multiple occasions, and there is no need to build a boiler room, which reduces the user's investment and operating costs.
The advantages of strong mobility, no installation, energy saving, environmental protection, safety and reliability, wide range of application and cost reduction make it an ideal choice for various occasions that require temporary or mobile heat source.
Widely used in petroleum, chemical production, food processing, textile, printing and dyeing, tobacco, feed processing, medicine, building materials, brewing, rubber, hospital sterilization, mechanical processing, vegetable oil processing, non-ferrous metal processing, centralized heating, papermaking industry, tobacco industry, cable processing, hotels and life heating.
| del | Rated evaporation capacity (t/h) | Rated steam pressure (Mpa) | Thermal efficiency (％) | Fuel consumption | Overall dimension (m) | Weight (t) | Body Heating Area (m2) | |
| Light oil (Kg/h) | Natural gas (Nm³/h) | |||||||
| WNS1-0.7/1.0-Y(Q) | 1 | 0.7/1.0 | >90 | 66.5 | 75 | 3.6×2.0×2.0 | 4 | 25 |
| WNS2-1.0/1.25-Y(Q) | 2 | 1.0/1.25 | >90.2 | 133 | 150 | 4.8×2.5×2.46 | 8 | 60 |
| WNS4-1.0/1.25-Y(Q) | 4 | 1.0/1.25 | >91 | 266 | 300 | 5.8×2.85×2.8 | 13 | 113 |
| WNS6-1.25/1.6-Y(Q) | 6 | 1.25/1.6 | >91.5 | 399 | 450 | 7.25×3.1×3.15 | 19 | 181 |
| WN8-1.25/1.6-Y(Q) | 8 | 1.25/1.6 | >91.6 | 532 | 600 | 7.45×3.26×3.2 | 22.6 | 190 |
| WNS15-1.25/1.6-Y(Q) | 15 | 1.25/1.6 | >91.8 | 997 | 1125 | 8.7×3.7×3.5 | 34 | 346 |
| WNS20-1.25/1.6-Y(Q) | 20 | 1.25/1.6 | >92 | 1204 | 1418 | 10×3.6×4.0 | 45 | 467 |
| Note: Parameter is for reference only, we can design the boilers based on customers’ needs. | ||||||||
