Thermal capacity: 1-25 ton/h
Rated thermal efficiency: 97-100%
Pressure: 1-1.6Mpa
Available fuel: Heavy oil, diesel, natural gas, lpg, etc.
Available industries: food beverage feed mill textile mill paper mill packaged refinery chemical pharmaceutical, etc.
| Model | Rated evaporation capacity (t/h) | Rated steam pressure (Mpa) | Thermal efficiency (％) | Fuel consumption | Overall dimension (m) | Weight (t) | Body Heating Area (m2) | |
| Light oil (Kg/h) | Natural gas (Nm³/h) | |||||||
| WNS1-0.7/1.0-Y(Q) | 1 | 0.7/1.0 | >90 | 66.5 | 75 | 3.6×2.0×2.0 | 4 | 25 |
| WNS2-1.0/1.25-Y(Q) | 2 | 1.0/1.25 | >90.2 | 133 | 150 | 4.8×2.5×2.46 | 8 | 60 |
| WNS4-1.0/1.25-Y(Q) | 4 | 1.0/1.25 | >91 | 266 | 300 | 5.8×2.85×2.8 | 13 | 113 |
| WNS6-1.25/1.6-Y(Q) | 6 | 1.25/1.6 | >91.5 | 399 | 450 | 7.25×3.1×3.15 | 19 | 181 |
| WN8-1.25/1.6-Y(Q) | 8 | 1.25/1.6 | >91.6 | 532 | 600 | 7.45×3.26×3.2 | 22.6 | 190 |
| WNS15-1.25/1.6-Y(Q) | 15 | 1.25/1.6 | >91.8 | 997 | 1125 | 8.7×3.7×3.5 | 34 | 346 |
| WNS20-1.25/1.6-Y(Q) | 20 | 1.25/1.6 | >92 | 1204 | 1418 | 10×3.6×4.0 | 45 | 467 |
| Note: Parameter is for reference only, we can design the boilers based on customers’ needs. | ||||||||
Global Sale Boilers Qualified With ISO CE ASME DOSH EAC Certificates.

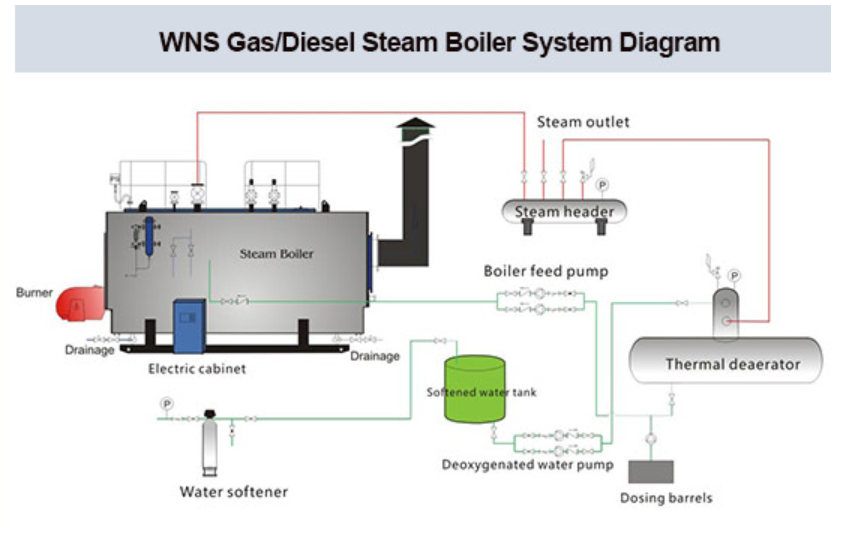

WNS fire tube boiler, horizontal type furnace combustion boiler with gas/oil burner. Its fire-tube boilers and flue gas three pass boiler, special wet back structure make sure long using lifespan.
